Description

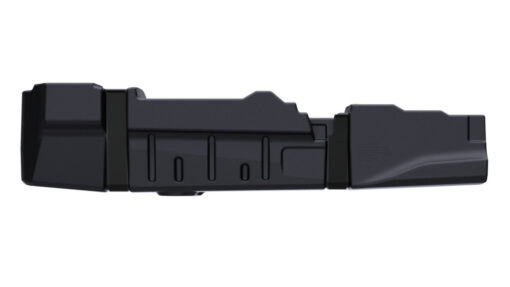

S&B Filters 2008-2010 Ford Powerstroke 6.4L Crew Cab Short Bed 60 Gallon Replacement Fuel Tank
This tank holds approximately 60 gallons of fuel. The float’s empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.
S&B Sump Fittings/Drain Plug fittings are required when using our sump feed/return port or after drilling out the bottom port to use as a drain. Fittings are under related products.
- Street legal in all us states: Yes
- Tank type: Midship
- S&b capacity (approximate): 60 gallons
- Oem capacity29 gallons
- Weight (dry): 45lbs
- Ground clearance compare to oe tank: 2.9″ lower than stock.
- Sump: Yes
- Drain: Yes
- Sending unit: Oe
- Straps included: Yes
- Compatible with oe skid plate: No
- Compatible with gooseneck and 5th wheel: Yes
- Transfer pump ready: Yes
- Embedded fitting thread size: 1/2″ npt
- Dimensions: 79″ x 17.37″ x 19.37″
More fuel. Less hassle.
Holds 9 more gallons than competitor tanks!
S&b’s 60-gallon fuel tank directly replaces the oem 29-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&b’s replacement fuel tank holds 9 more gallons than competitor tanks allowing you to save time, go futher, and get more out of your truck! Go big or go home!
Transfer pump & aftermarket lift pump
Save space in your truck bed and pull fuel out of your large s&b tank with our gpi transfer pump kit.
This tank features a built in sump which can be used for aftermarket lift pump installation, if desired. S&b recommends aftermarket lift pumps be installed according to the pump manufacturer’s instructions only. The s&b sump will not cure typical “1/4 tank issues” common with aftermarket lift pumps.
Notes:
Do you have an Auxiliary Fuel Tank? Using these with our tanks will void the Lifetime Warranty.
