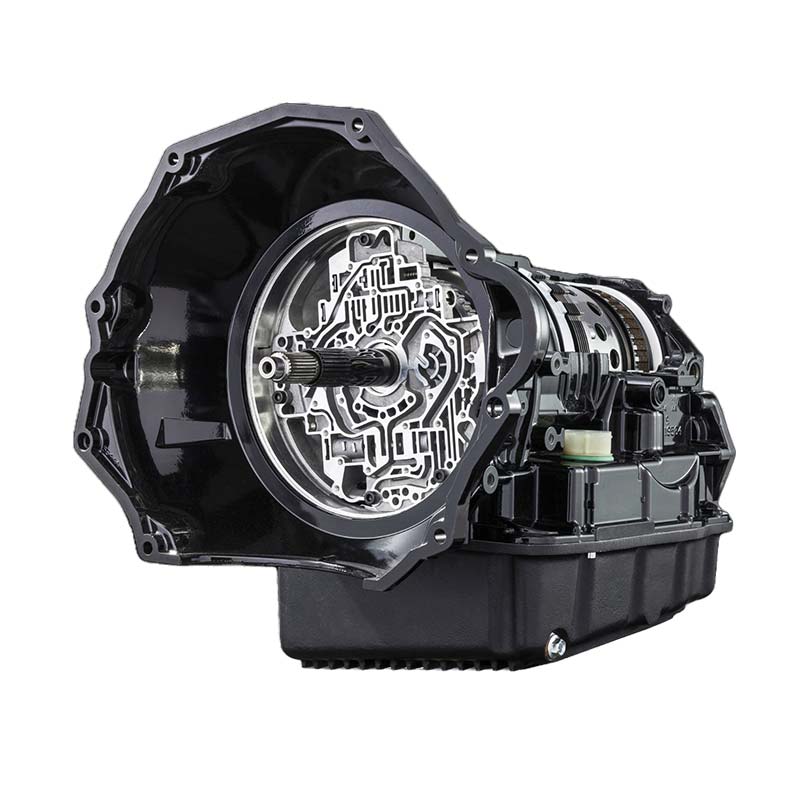

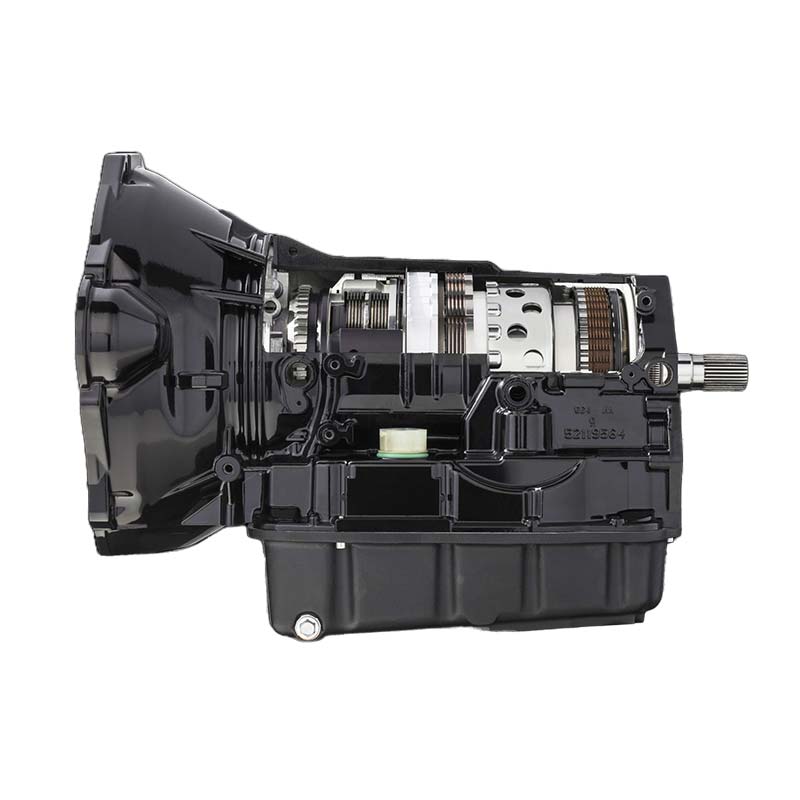

RevMax 2019-1022 Dodge Ram 6.7L Cummins 2WD 68RFE-115B Signature Series 68RFE 700 Transmission

Replace the underperforming transmission in your 2019-2022 Ram 6.7L Cummins 2WD with the RevMax 68RFE-115B Signature Series 68RFE 700 2WD Transmission. Revmax built this transmission to meet the needs of mid-level builds like heavy-duty towing applications or weekend warriors. Backed by over a year of thorough R&D and performance testing this transmission is rated for up to 700HP. These units are manufactured to the most stringent tolerances by one expert technician from beginning to end, and each unit is signed by the technician when finished.

Disassembly Process and Cleaning:
Complete disassembly of the entire transmission, all wearable “soft parts” are discarded.
Casing and housings are washed in our 190 degree hot wash tank.
Hard parts are thoroughly inspected and then either discarded or hand washed
Casing is thoroughly checked for any cracks or damage

Upgraded Internal Components:
Revmax Signature 700 Anodized Billet Input Clutch Drum, loaded with custom Revmax clutches, steels and laser cut pressure plates.
Billet UD Pressure Plate
Billet OD Pressure Plate
Revmax PATENT PENDING Direct Centrifugal Oiling Billet Input Shaft
Revmax PATENT PENDING Billet 300M Overdrive/Intermediate shaft
Billet Stage 5 Triple Disc 68RFE Torque Converter with Custom Stator Assembly
2x Thick Accumulator Plate with Reinforced and Added Threads, Hardware
Billet 3/2 Triple Double Seal Accumulator Pistons
Transgo Steel SSV Valve and End Plug
Upgraded Smooth-Lock TCC Switch Valve
Billet ZeroFlex 6061 Billet Valve Body Plate
RevMax leak free bonded separator plate that is 2.5x thicker than OEM.
4 clutch 2nd clutch with G3 clutches and Kolene steels, custom machined pressure plate and piston. (Factory is 3 standard clutches and steels)
Billet 2nd clutch piston assembly
4 clutch 4th Clutch pack with G3 clutches and Kolene steels, custom machined pressure plate and piston. (Factory is 3 standard clutches and steels)
Custom 4th clutch pressure plate
High Performance Low /Reverse Clutches
High Energy Reverse Clutches
Revmax High Pressure Pump
Revmax Billet Towing HD Valve Body
Brand New Internal Solenoid Pack
Custom calibrated Revmax performance valve body, fully tested on computerized valve body dyno
Extra deep 4.5 quart additional cast aluminum pan with drain plug
Steel Filter Screw Insert

Note:
Trucks with tires that are larger than 35″ will not be covered under warranty unless proof of a differential gear change is provided.
