Description

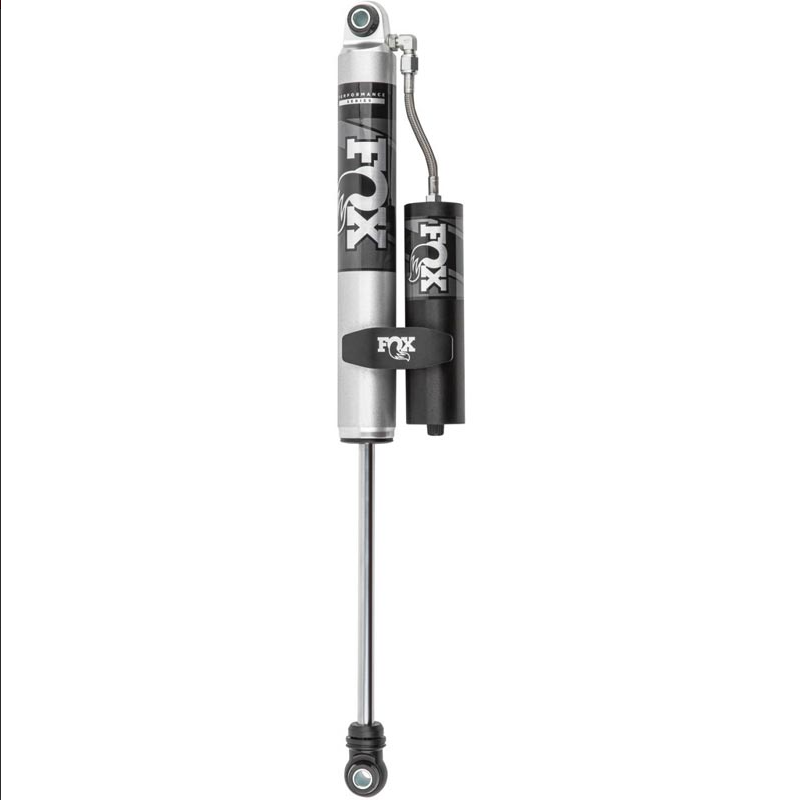

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX’s industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

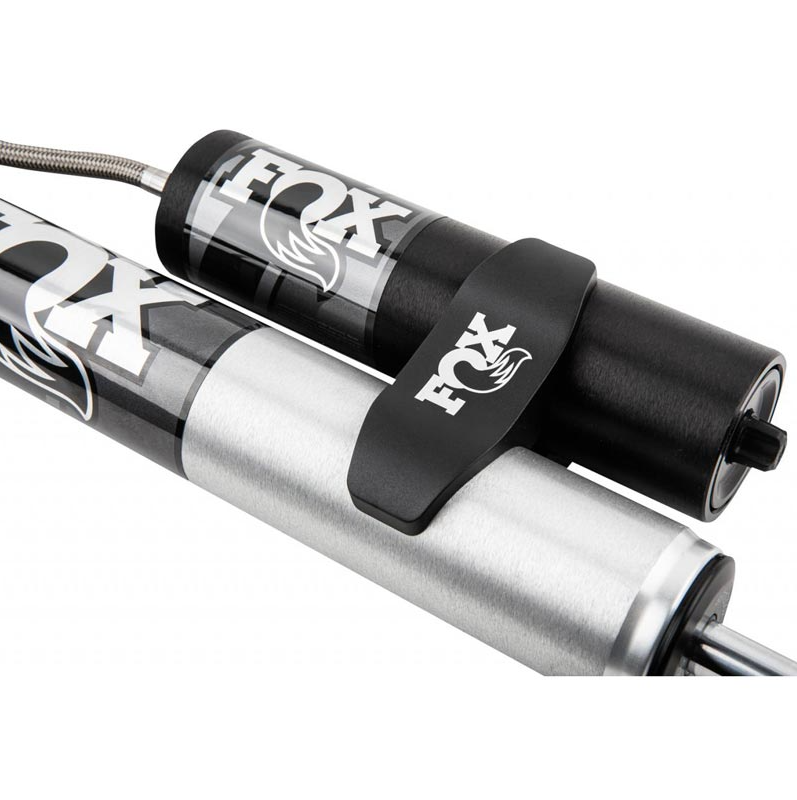

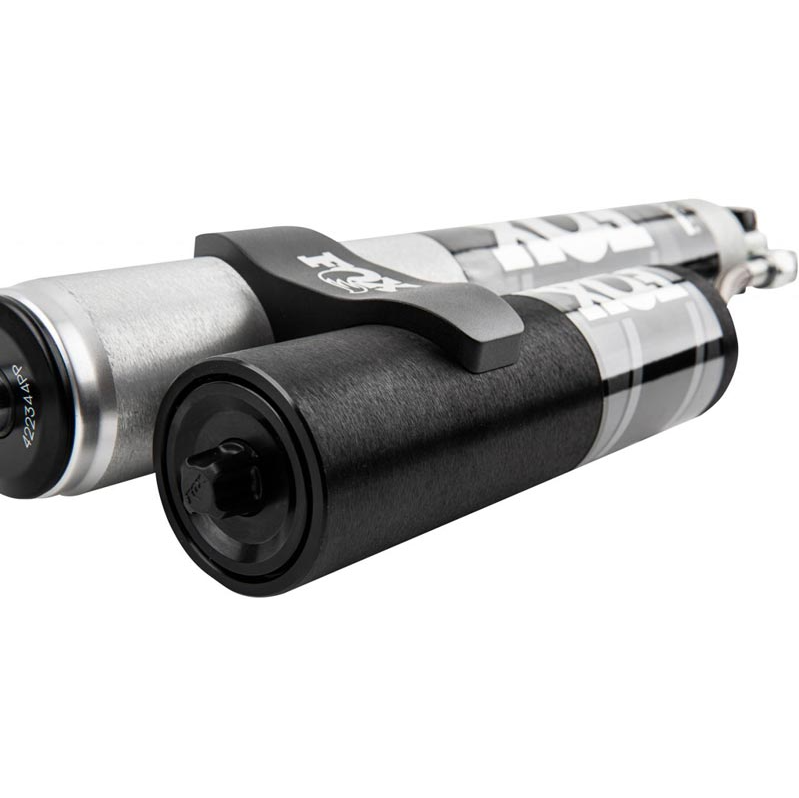

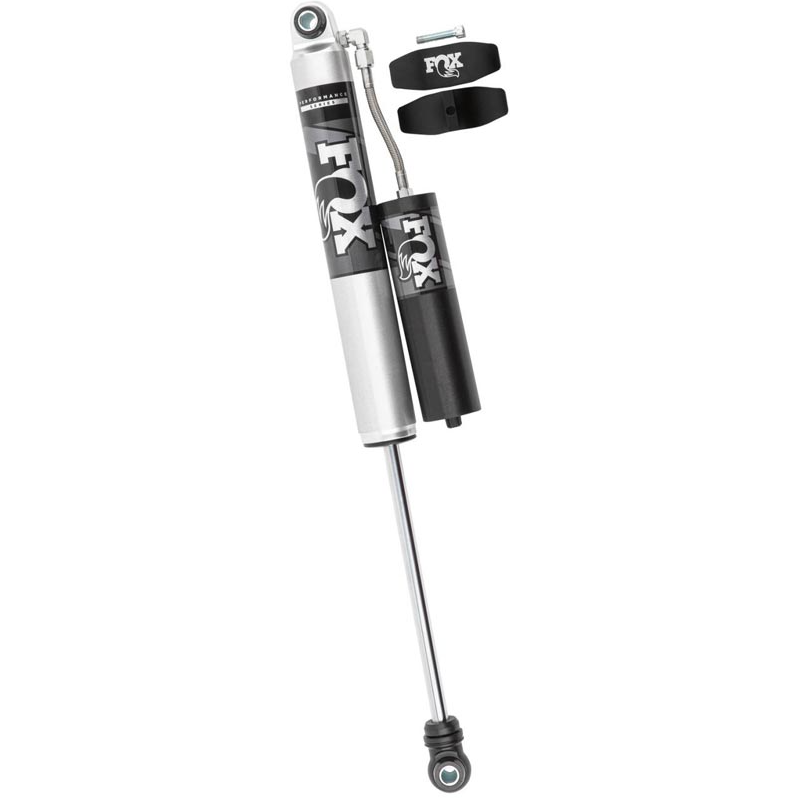

Its external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predictable ride quality capable of handling the roughest road conditions.
| Body | 2.0″ Impact extruded 6061-T6 aluminum will resist rust over time |
|---|---|
| Body Plating | Clear-anodized for a durable finish |
| Reservoir | 2.0″ Smooth bore 6061-T6 Aluminum is hard anodized |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8″ hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
| Extended | 26.520 |
| Compressed | 15.900 |
| Travel | 10.620 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| MSRP | $309.95 |
Additional information
| Weight | 7.40 lbs |
|---|---|
| Dimensions | 40.13 × 5.69 × 2.69 in |
Brand
Brand
FOX
Reviews (0)
Be the first to review “Fox 2020-2024 GM 6.6L Duramax 0″-1″ Lift Performance Series 2.0 Smooth Body Reservoir Shock (Rear)”
Vehicle Fitment
| Make | Model | Year |
|---|---|---|
| Duramax | 6.6L L5P | 2020 - 2025 |
