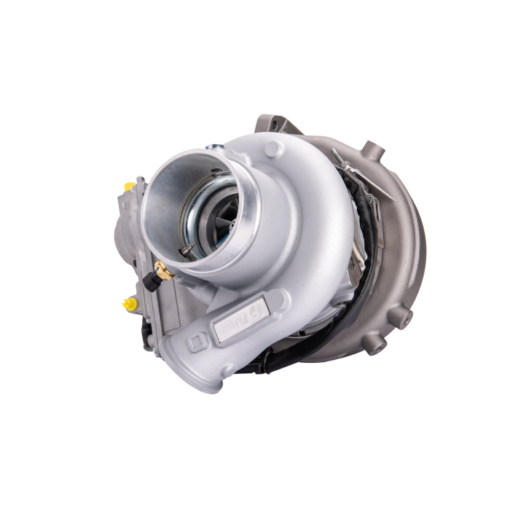

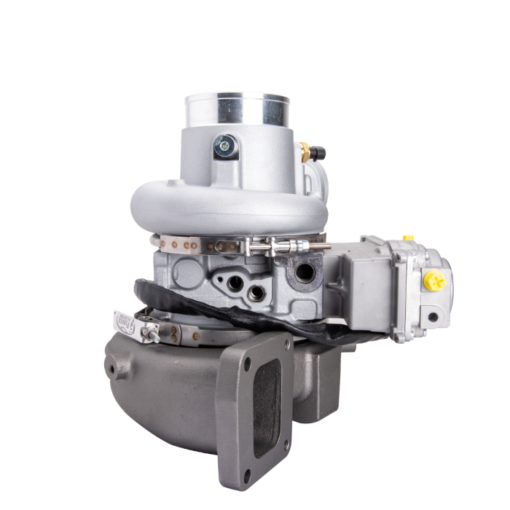

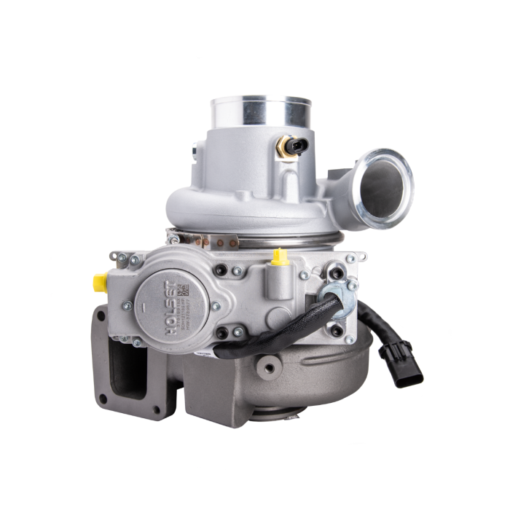

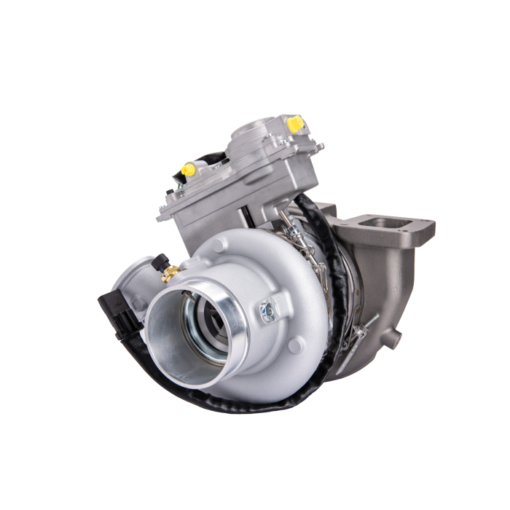

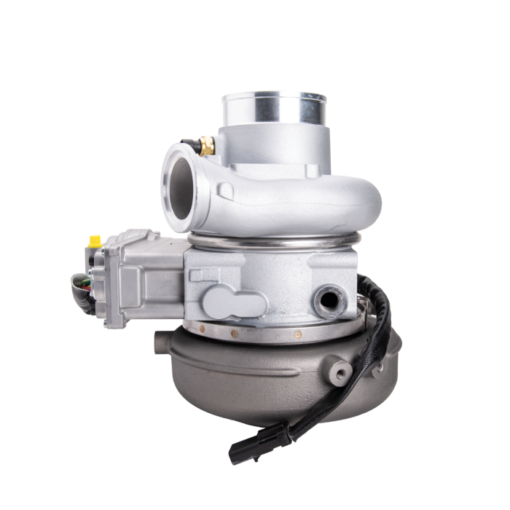

Fleece Performance Ram Cummins ISX CM2250/CM2350 New HE400VG/HE451VE Turbocharger (64MM)

From the turbo experts at Fleece Performance comes our all new HE400VG / HE451VE replacement turbocharger – providing you with a new, reliable replacement turbocharger to get you back on the road. Fleece Performance Engineering turbochargers set the industry standard for quality and reliability – our turbocharger is a direct replacement for Cummins ISX CM2250 and CM2350 models.

FEATURES

• No core charge
• New Holset actuator

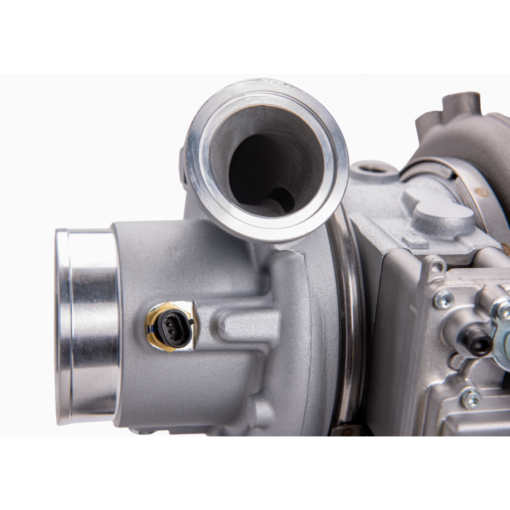

• New air intake temperature sensor
• New turbine speed sensor
• New turbine flange gasket
• New mounting studs and nuts

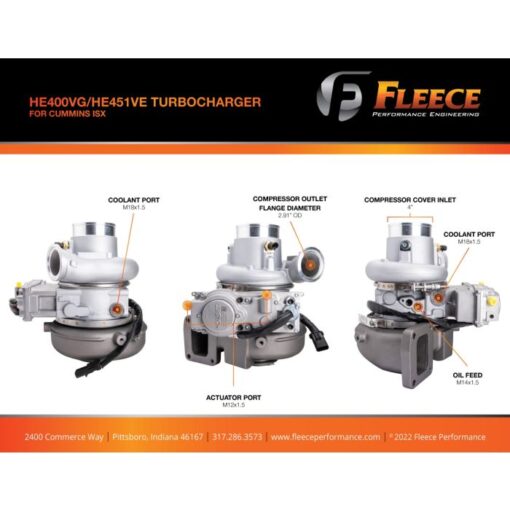

SPECIFICATIONS

• Coolant ports: M18x1.5
• Oil feed port: M14x1.5
• Compressor intake OD: 4.0”
• Compressor outlet OD: 2.9”

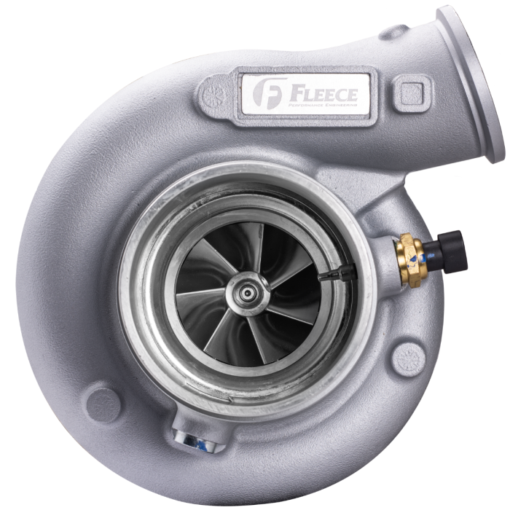

Compressor wheel:

• Blade count: 7×7
• Inducer: 64mm
• Exducer: 92mm

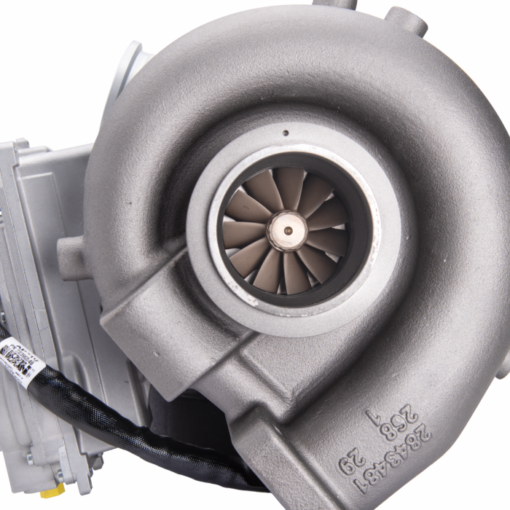

Turbine wheel:

• Blade count: 11
• Inducer: 72mm
• Exducer: 67mm

Shipping weight: 65 lbs

PRIOR PART NUMBERS AND CROSS-REFERENCE

2882110NX, 2840007, 2841220, 2841221, 2841222, 2881807, 2882004, 2882110, 2882111, 3768194, 3773561, 3773562, 3773569, 3792586, 288211100, 288211100, 2882004NX, 2882004NX, 2882110NX, 288211100HX, 2882111NX, 2882111NX, 2882111RX, 3792586H, 3792586HX

*This list is not exhaustive of all possible cross-reference turbochargers.  Verify fitment with your ESN.
