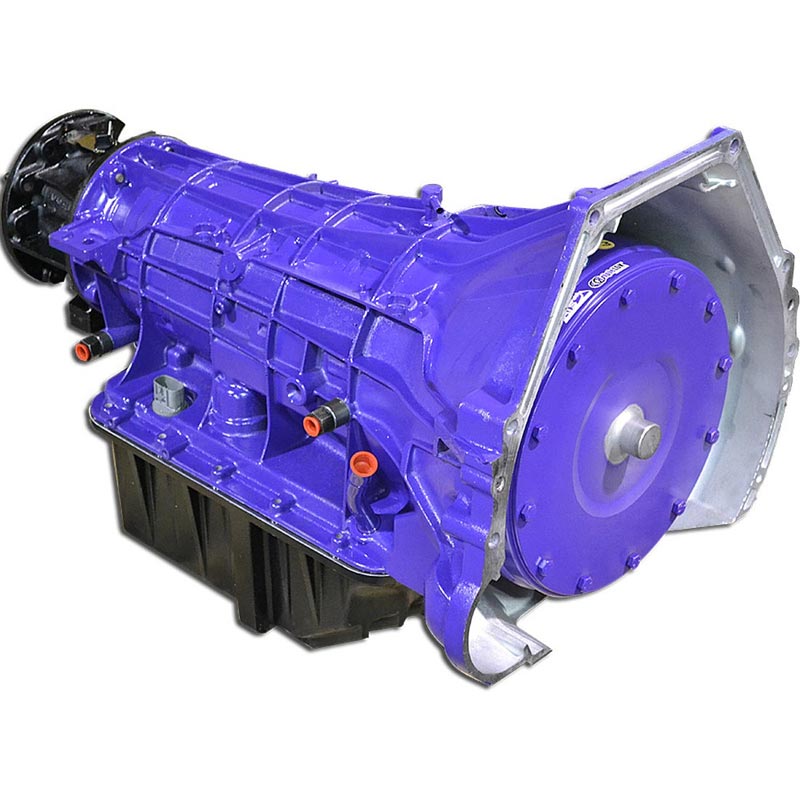

ATS Built 2008-2010 Ford 6.4L Powerstroke 5R110 Transmission Package

Upgrade the 5R110 transmission in your 2008-2010 Ford 6.4L Powerstroke with the ATS Built 5R110 Transmission. Innovation and technology set ATS apart from the rest. Between their engineering team, and their transmission specialists, ATS has logged thousands of hours in building, testing, and manufacturing to bring you the best transmission worth of bolting up behind your legendary Powerstroke engine. ATS transmissions include extensive modifications so you can put power to the ground whether you’re towing, daily driving, or on the race track. Backed by the ATS 5-year, 500,000 mile warranty, this transmission comes ready to install and is dyno tested before shipping.

ATS 5R110 BUILD (ALL STAGES)
Upgraded Pump – Machined housing for larger and higher quality components for better fluid flow
Shimmed PR Valve – Maintains higher line pressures
5 Forward GPZ Clutches
5 Intermediate GPZ Clutches
5 Overdrive GPZ Clutches
6 Direct GPZ Clutches
Custom Machined Clutch Pack Apply Plates
Teflon Seal Rings
Custom Machined Direct Drum & Upgraded Bushing
New OEM Center Support
New OEM Speed Sensors
All Bushings & Bearings Replaced
All New Gaskets & Seals
All New Filter
Modified Solenoids

STAGE 1 TRANSMISSION:
ATS Built 5R110 Auto Trans
ATS 5 Star Viskus Clutch Drive Torque Converter
ATS Extra Deep Transmission Pan

STAGE 2 TRANSMISSION:
ATS Built 5R110 Auto Trans
ATS 5 Star Viskus Clutch Drive Torque Converter
ATS Extra Deep Transmission Pan
ATS Billet Input Shaft

STAGE 3 TRANSMISSION:
ATS Built 5R110 Auto Trans
ATS 5 Star Viskus Clutch Drive Torque Converter
ATS Extra Deep Transmission Pan
ATS Billet Input Shaft
ATS Billet Flex Plate

Build Date Guide:
2008-2010 Transmission: Trucks built from Feb-2007 to Jul-2010

Warranty Information:
This ATS Automatic Transmission carries a FIVE YEAR/FIVE HUNDRED THOUSAND MILE (5 yr/500,000 mile) Warranty. This Warranty shall not apply to any automatic transmission that has been improperly stored or installed This Warranty shall not apply to misapplication, improper operating conditions, accidents, or neglect. This Warranty shall not apply to an automatic transmission that has been improperly repaired, maintained and/or altered by the owner or his agent/tech. Most importantly, all transmission shafts are not covered by this Warranty on any transmission due to the capability of certain situations to cause stress-loads beyond the structural ability of the shaft. ATS’ Automatic Transmission Warranty is NOT transferable. It is mandatory for implementation of this warranty that line pressures are tested at time of install. ATS will not pay for any fluids replaced in the event of a transmission failure.
