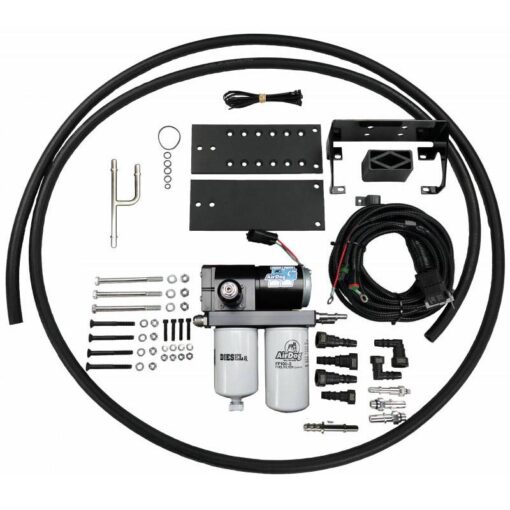

AirDog 2011-2016 Ford 6.7L Powerstroke II-5G DF-165-5G Air/Fuel Seperation System

The Pureflow AirDog II-5G A7SABF589 DF-165-5G Air/Fuel Separation System is the newest generation in fuel delivery systems for your 2011-2016 Ford 6.7L Powerstroke. The 5G is engineered to be the longest lasting, most efficient, and quietest lift pump system. The AirDog II-5G features a 4-bearing motor with an intermediate shaft that reduces pump noise and improves reliability. A dual feed design supplies fuel to both sides of the gerotor pump to decrease air bubbles and cavitation. The demand flow design allows the pump to only send the necessary amount of fuel to the engine.

The AirDog II-5G utilizes a diaphragm style fuel pressure regulator allowing the pump to be boost referenced and adjusted from 7-70 PSI The 5G system features larger 3/4-16 O-ring boss inlet and outlet ports. A 7/16-20 (-4) low-flow return is used to prevent aeration in the fuel being sent to back to the tank.

FEATURES:
165 GPH Pump
4 Bearing Motor with Intermediate Shaft
Larger Ports Over Previous Pumps
Diaphragm Fuel Pressure Regulator
Demand Flow Design
Reduced Aeration From Low Flow Return
