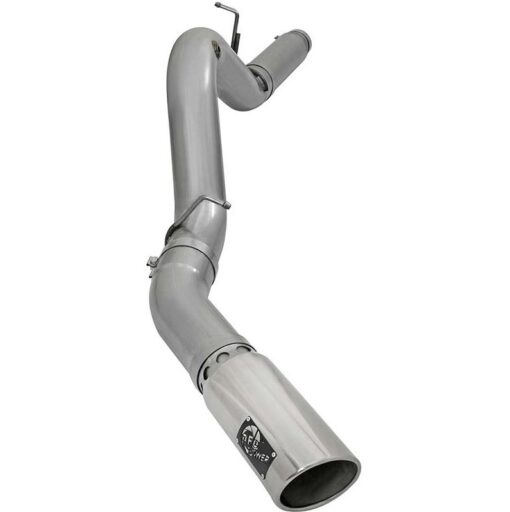

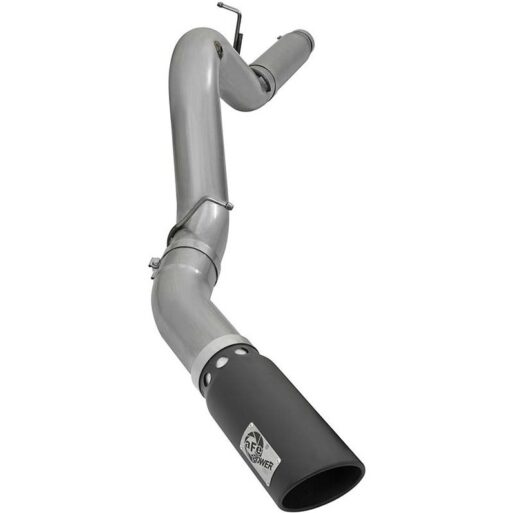

aFe 2016 GM HD Duramax 6.6L Large Bore HD 5″ DPF Back Exhaust System

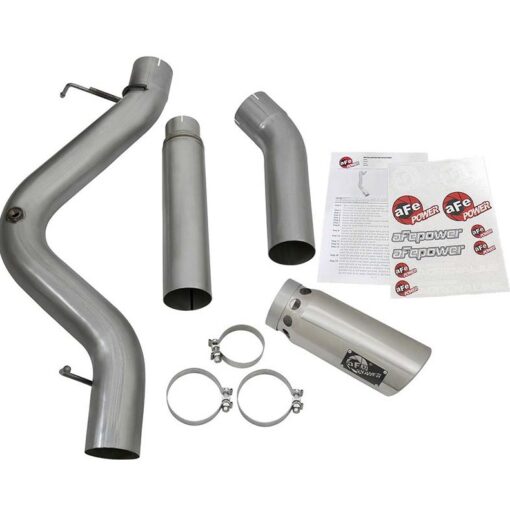

Improves looks, flow, and performance on your 2016 GM 6.6L Duramax with the AFE 49-44081 Large Bore HD 5″ Filter-Back Exhaust System. This system is constructed from 5″ mandrel-bent 409 stainless steel tubing and uses high quality band clamps and OE-style bayonet hangers. This unit uses all factory mounting locations to provide a quick, hassle-free installation. Also included in this exhaust system is your choice of a massive 6″ polished or black powder coated 304 stainless steel tip with a laser-cut stainless steel aFe power badge. Large Bore-HD exhaust systems are the perfect combination of performance, fit and value.

Simple Installation:

All systems use factory mounting locations providing stability and hassle-free installation.

Leak-Free Seal:

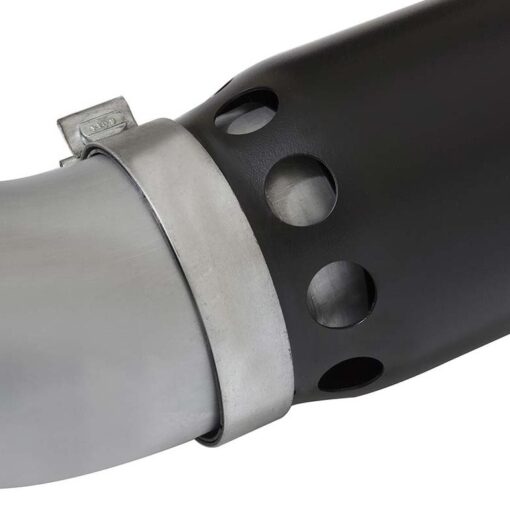

High quality band clamps are included for a complete 360 degree sealing surface.

OE Fit:

OE-style bayonet hangers are used to maintain a stable pipe location during high vibration and high heat conditions. The bayonet tip holds the hanger bushing in place for an OE-style fit that does not change with time.

Flow and Performance:

This Large Bore-HD exhaust system is constructed of 5" mandrel-bent stainless steel tubing for maximum flow. Smooth transition bends allow for low turbulence, increasing horsepower, torque and lowering EGTs.

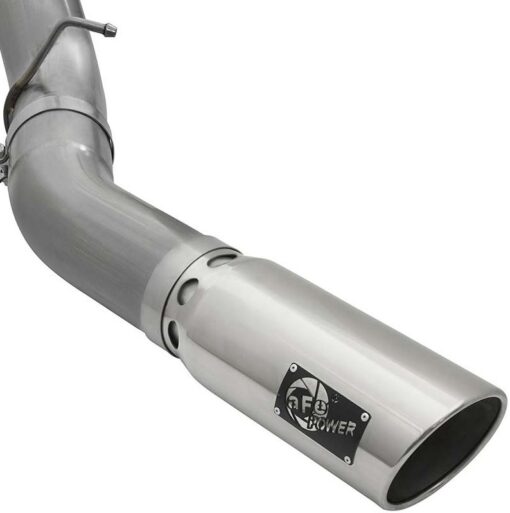

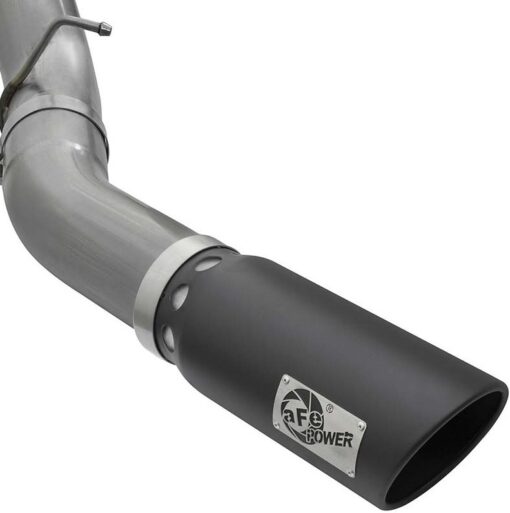

6″ Diameter Intercooled Tip:

Finishing off the exhaust is your choice of a 6″ diameter, polished or black powder coated stainless steel slash cut tip with intercooling vents designed to reduce exhaust gas temperatures at the tailpipe. A unique stainless steel laser-cut aFe Power logo plate is riveted on for an aggressive style.

Features:

• 5″ Filter-Back Exhaust
• Fits Models With NOX Sensor
• Mandrel Bent Stainless Steel
• Your Choice Of Black Or Polished Exhaust Tip

Fits all Crew & Extended Cab Applications

Note: This exhaust system is intended for use on models with the NOX Sensor. Cutting is required for some cab configurations. All Crew & Extended Cab fitment applies to 2500HD/3500HD Pickups. This system is not intended for use on Cab & Chassis models.

Applications:

• Extended Cab/Short Bed, 6.6ft Bed, 143.5 Wheelbase
• Crew Cab/Short Bed, 6.6ft Bed, 153.7 Wheelbase
• Extended Cab/Long Bed, 8ft Bed, 158.1 Wheelbase
• Crew Cab/Long Bed, 8ft Bed, 167.7 Wheelbase
