Description

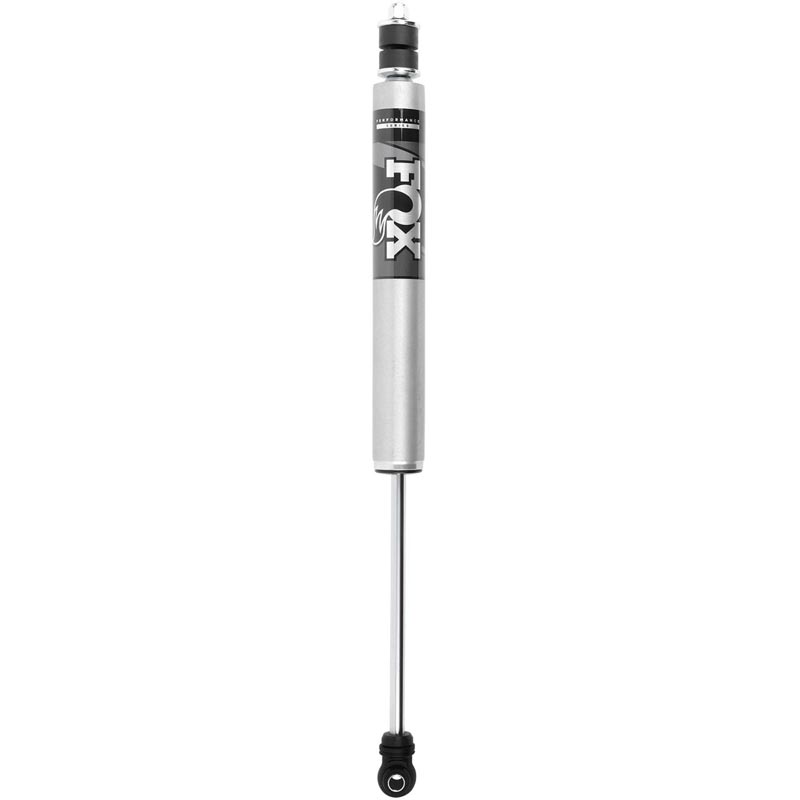

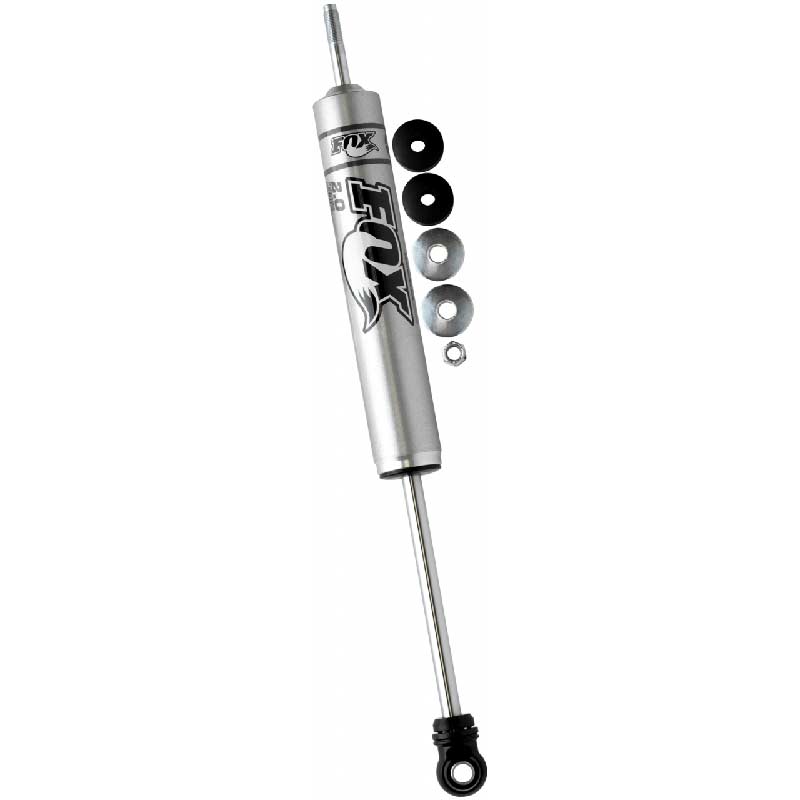

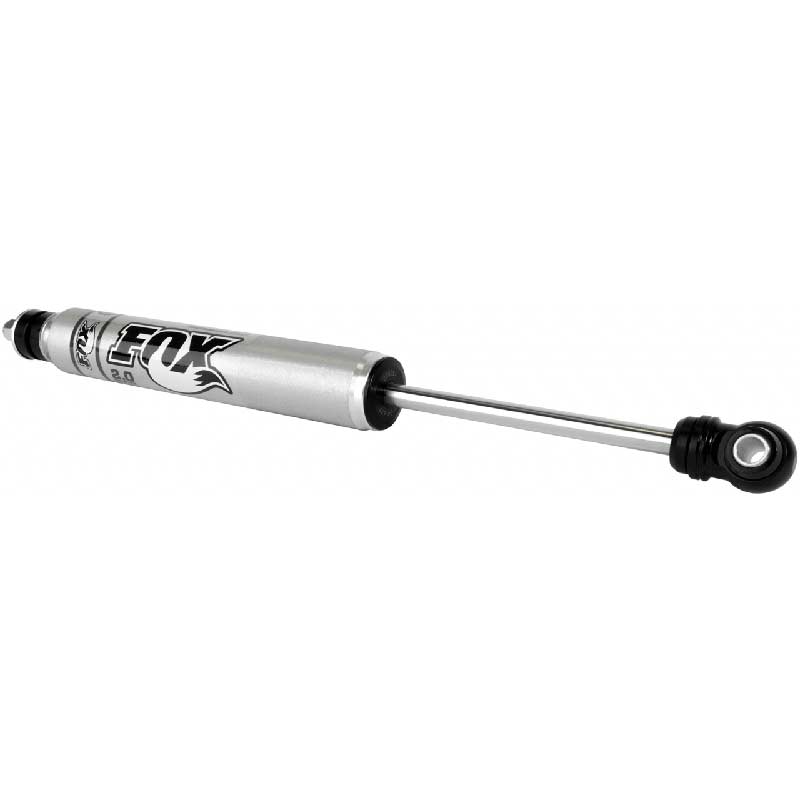

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
| Body | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
|---|---|
| Body Plating | Clear-anodized for a durable finish |
| Reservoir | Internal IFP mono-tube reservoir design |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8″ hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
| Extended | 22.280 |
| Compressed | 14.150 |
| Travel | 8.130 |
| Top Mount | Stem Top |
| Bottom Mount | Eyelet |
| MSRP | $199.95 |
Additional information
| Weight | 15 lbs |
|---|---|
| Dimensions | 41 × 3 × 3 in |
Brand
Brand
FOX
Reviews (0)
Be the first to review “2005-2016 Ford F-250/350 4WD 0″-1″ Lift Fox 2.0 Performance Series IFP Shock Absorber (Front)”
Vehicle Fitment
| Make | Model | Year |
|---|---|---|
| Power stroke | 6.7L | 2011 - 2016 |
