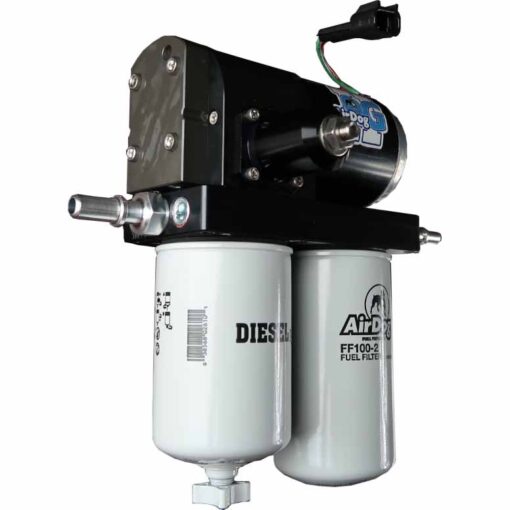

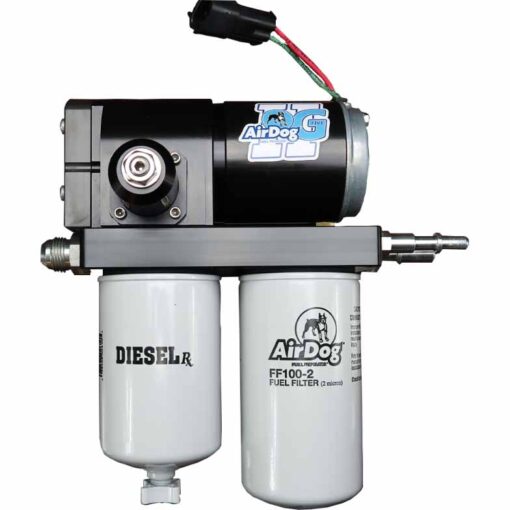

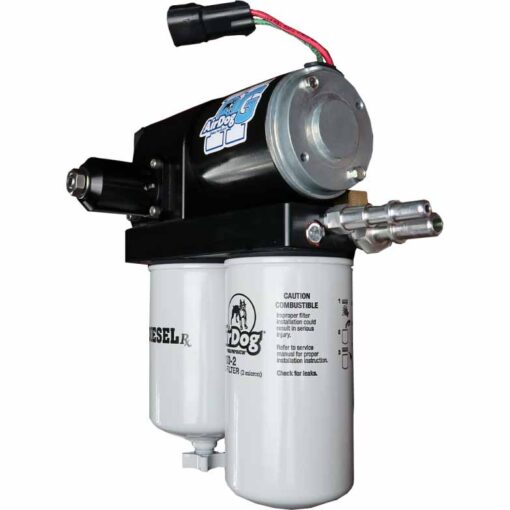

AirDog 2004.5-2018 Dodge Ram 5.9/6.7L Cummins II-5G 9 DF-100-5G Air/Fuel Seperation System

The AirDog II-5G A7SPBD254 DF-100-5G Air/Fuel Separation System is the latest and greatest in fuel delivery for your 2004.5-2018 Dodge 5.9L/6.7L Cummins (Stock To Moderate).

The AirDog II-5G is the first diesel Fuel Air Separation System to include an integrated diaphragm fuel pressure regulator. This regulator allows for more fuel pressure adjustability, offers better fuel flow at pressure, and can be boost compensated! In addition, all 5G systems come with improved wiring harnesses and connectors.

The AirDog II-5G offers protection and performance like no other lift pump. Their patented air separation, along with a water separator, and fuel filter makes sure your expensive injection system components get all the clean fuel they can handle. The AirDog II-5G also overcomes loss of power due to driving in higher altitudes with a factory fuel pump. This system improves engine performance by eliminating spray pattern disruption due to air entering the system. This allows the engine to keep its designed injection timing which allows a more complete burn of the fuel entering the cylinder. This increases overall engine efficiency across the power and torque
range.

The wiring harness is now 12-gauge from the battery all the way to the internal connections in the motor. A Metri-Pack 280 connector replaces the Deutch 2-pin connector which allows more current flow without creating excessive heat. All other connectors in the harness are weather packs to keep the elements out. This system has the same 4G motor technology that has proven itself to be a reliable, quiet operating system. It also retains the “Demand Flow” of the older AirDog II variants. Demand Flow means whatever fuel the injection system does not use gets recirculated back through the filter base.

FEATURES:
Demand Flow Design Recirculates Fuel Back Through The Filter Base
Lifetime Limited Warranty
Maintains Reliable & Quiet 4G Motor Technology
Improves Engine Efficiency
Integrated Diaphragm Fuel Pressure Regulator
Provides Better Fuel Flow At Pressure
100 GPH Fuel Pump
12-Gauge Wiring
Larger Ports Over Previous Pumps
Reduced Aeration From Low Flow Return

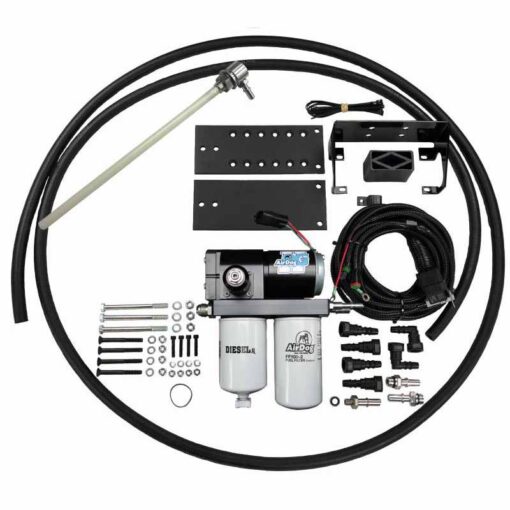

Includes Wiring, Plumbing, & Installation Hardware
